SUCHA 200

Thematerial of stainless steel insert bearings are AlSI 440 and AISI 420, and usingAISI 304, AISI 316 and PBT plastic material to produce the bearing housingWe also produces Zinc Alloy Bearing Units, Pressing Steel Bearing Housingsand Precision Castings.

Key words:

SUCHA 200

category:

Stainless Steel Bearing Unit

Telephone：

+86-519-86216566

message

contact

Detailed introduction

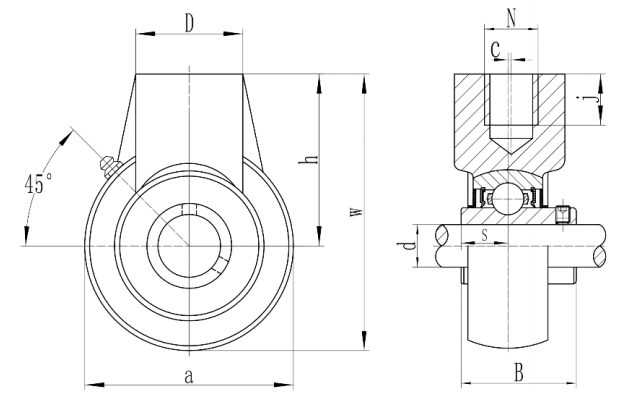

Bearing Unit No.	Bore Dia		Dimensions(mm)									Bearing No.	Housing No.	Weight (kg)
	d		a	D	w	h	c	j	N	B	S
	in	mm	a	D	w	h	c	j	N	B	S
SUCHA201 SUCHA201-8 SUCHA202 SUCHA202-10 SUCHA203 SUCHA203-11	1/2 5/8 11/16	12 15 17	64	40	96	64	0	19	PF3/4	31.0	12.7	SUC201 SUC201-8 SUC202 SUC202-10 SUC203 SUC203-11	SHA203	0.74
SUCHA204 SUCHA204-12	3/4	20	64	40	96	64	0	19	PF3/4	31.0	12.7	SUC204 SUC204-12	SHA204	0.69
SUCHA205 SUCHA205-14 SUCHA205-15 SUCHA205-16	7/8 15/16 1	25	78	40	103	64	0	19	PF3/4	34.1	14.3	SUC205 SUC205-14 SUC205-15 SUC205-16	SHA205	1.00
SUCHA206 SUCHA206-17 SUCHA206-18 SUCHA206-19 SUCHA206-20	1-1/16 1-1/8 1-3/16 1-1/4	30	78	40	103	64	0	19	PF3/4	38.1	15.9	SUC206 SUC206-17 SUC206-18 SUC206-19 SUC206-20	SHA206	1.00
SUCHA207 SUCHA207-20 SUCHA207-21 SUCHA207-22 SUCHA207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	92	40	116	70	0	19	PF3/4	42.9	17.5	SUC207 SUC207-20 SUC207-21 SUC207-22 SUC207-23	SHA207	1.38
SUCHA208 SUCHA208-24 SUCHA208-25	1-1/2 1-9/16	40	96	40	121	73	2.0	19	PF3/4	49.2	19.0	SUC208 SUC208-24 SUC208-25	SHA208	1.64
SUCHA209 SUCHA209-26 SUCHA209-27 SUCHA209-28	1-5/8 1-11/16 1-3/4	45	108	48	136	82	5.0	21	PF1	49.2	19.0	SUC209 SUC209-26 SUC209-27 SUC209-28	SHA209	2.08
SUCHA210 SUCHA210-29 SUCHA210-30 SUCHA210-31 SUCHA210-32	1-13/16 1-7/8 1-15/16 2	50	118	48	142	83	5.0	21	PF1	51.6	19.0	SUC210 SUC210-29 SUC210-30 SUC210-31 SUC210-32	SHA210	2.61
SUCHA211 SUCHA211-32 SUCHA211-33 SUCHA211-34 SUCHA211-35	2 2-1/16 2-1/8 2-3/16	55	126	60	158	95	7.0	25	PF1-1/4	55.6	22.2	SUC211 SUC211-32 SUC211-33 SUC211-34 SUC211-35	SHA211	2.94
SUCHA212 SUCHA212-36 SUCHA212-37 SUCHA212-38 SUCHA212-39	2-1/4 2-5/16 2-3/8 2-7/16	60	142	60	173	102	9.0	28	PF1-1/4	65.1	25.4	SUC212 SUC212-36 SUC212-37 SUC212-38 SUC212-39	SHA212	4.40

- Why choose us? -

Thematerial of stainless steel insert bearings are AlSI 440 and AISI 420, and usingAISI 304, AISI 316 and PBT plastic material to produce the bearing housingWe also produces Zinc Alloy Bearing Units, Pressing Steel Bearing Housingsand Precision Castings. Our products are mainly exported to Europe, UnitedStates, Japan, and South Korea, and we warmly welcome domestic andforeign friends to visit our company for business cooperation.
